Originally published at: Apple Introduces Studio Display XDR and Refreshes Studio Display - TidBITS
Four years after its initial release, Apple has refreshed its Studio Display and introduced a new model—the Studio Display XDR—that replaces the $5000 Pro Display XDR while lowering the entry price for professional-grade display technology. Both displays bring significant improvements, but the Studio Display XDR is the bigger story, delivering mini-LED technology and HDR capabilities at a price point that makes them accessible to a much broader range of professionals.
Studio Display: Evolutionary Improvements
The updated Studio Display retains the same 27-inch 5K Retina display (5120-by-2880 at 218 ppi) that made the original popular, but Apple has upgraded several key components that matter for daily use:
- Better Camera and Connectivity: The most notable upgrade is the Studio Display’s camera system. Apple has replaced the 12-megapixel Ultra Wide camera with the 12-megapixel Center Stage camera, presumably the same one found in the iPad Pro, iPad Air, MacBook Air, and MacBook Pro. Although the grumbling died down over time—perhaps due to improvements delivered via firmware updates, perhaps due to exhaustion—early Studio Display users weren’t happy with its picture quality. The new camera also supports Desk View, the feature that simultaneously shows you and a top-down view of your workspace during video calls.
- More Thunderbolt 5: The Studio Display moves from one Thunderbolt 3 port and three USB-C ports to two Thunderbolt 5 ports and two USB-C ports. The jump to Thunderbolt 5 is substantial, providing up to 120 Gbps of bandwidth compared to the previous 40 Gbps. The additional bandwidth means you can now daisy-chain up to four Studio Displays or attach high-performance accessories. The rightmost Thunderbolt 5 port marked with a dot provides 96W of host charging power.
- Enhanced Audio: Apple claims the six-speaker system now delivers 30% deeper bass than the previous generation, thanks to redesigned force-cancelling woofers.
The Studio Display starts at $1599 with a tilt-adjustable stand, the same price as the original model. You can still configure it with nano-texture glass ($300), a tilt- and height-adjustable stand ($400), or a VESA mount adapter (no additional cost). Stand options must be chosen at purchase and aren’t interchangeable without Apple-authorized service.
Speaking as someone with a pair of the original Studio Displays, I can’t see any reason to upgrade, and I’m not sad that I bought before this new model came out. Those who are unhappy with the video quality of the original Studio Display have probably already purchased a better webcam, and people who need lots of Thunderbolt 5 bandwidth have probably already addressed it with a Thunderbolt dock. Plus, I can’t imagine Desk View being important to that many people. But for anyone buying today, the improvements are welcome.
Studio Display XDR: Pro Display Tech for Less
Here’s where things get interesting. With the Studio Display XDR, Apple has effectively taken the technology from its now-discontinued $5000 Pro Display XDR, modernized it, and brought it to market at $3299—a huge price reduction that puts professional-grade HDR display technology within reach of a larger audience.
Much of that cost savings likely comes from panel size. The 27-inch 5K panel is more common (and thus cheaper to source) than the Pro Display XDR’s 32-inch 6K panel, which almost certainly never achieved economies of scale. Like the standard Studio Display, the XDR version includes the 12-megapixel Center Stage camera with Desk View, the studio-quality three-mic array, and the immersive six-speaker system with Spatial Audio support. It also features Thunderbolt 5 connectivity with 140W of charging power—enough for a 16-inch MacBook Pro.
Here’s what sets the Studio Display XDR apart:

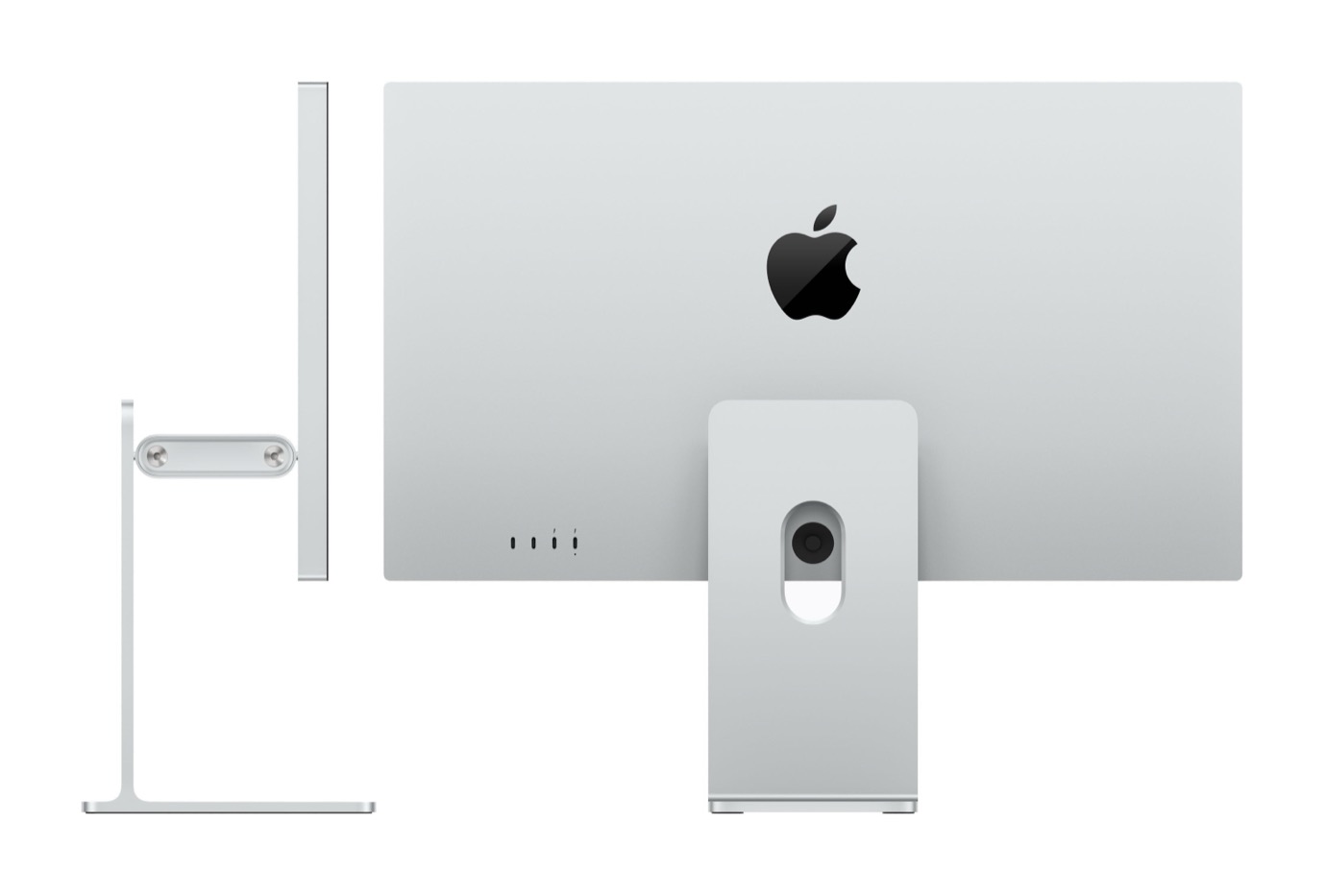

- Industrial design: Physically, the Studio Display XDR looks similar to the Studio Display, though its additional hardware makes it slightly deeper and noticeably heavier. The Studio Display XDR comes standard with the tilt- and height-adjustable stand (the $400 upgrade on the regular Studio Display), offering 105 mm of height adjustment with a sophisticated counterbalancing arm. A VESA mount adapter is available at no additional cost, and when VESA-mounted, the display can be rotated to portrait orientation. As with the regular Studio Display, the stand choice is permanent unless you pay an Apple Authorized Service Provider to change it.
- Backlighting tech: What most sets the Studio Display XDR apart is its 27-inch 5K Retina XDR display with mini-LED backlighting using 2,304 local dimming zones to deliver extreme contrast. The Studio Display XDR’s 2304 dimming zones are a 4x increase over the Pro Display XDR’s 576 zones, which should mean better contrast and less blooming.
- Brightness: The Studio Display XDR delivers up to 1000 nits of sustained SDR brightness, 2000 nits of peak HDR brightness, and a 1,000,000:1 contrast ratio. In comparison, the standard Studio Display has only 600 nits of brightness, and the Pro Display XDR has 500 nits of SDR brightness and 1600 nits of HDR brightness. In other words, the Studio Display XDR can sear your eyeballs, in a good way.
- Color accuracy: In a spec that will be appreciated by print and design professionals, the Studio Display XDR supports both P3 and Adobe RGB wide color gamuts, streamlining workflows that frequently switch between color spaces.
- 120 Hz and Adaptive Sync: Unlike its predecessor, which maxed out at 60 Hz, the Studio Display XDR offers a 120 Hz refresh rate, with Adaptive Sync supporting variable refresh rates from 47 Hz to 120 Hz. The higher refresh rate makes the display more responsive for video editing and even gaming, should you be so inclined.
In an interesting expansion of the display’s capabilities, Apple has introduced DICOM medical imaging presets that, once the Medical Imaging Calibrator app receives FDA clearance, will allow radiologists to view diagnostic images directly on the Studio Display XDR. In terms of raw display capability, the comparison with common radiology hardware is striking: the Studio Display XDR’s 5K panel (5120 by 2880, or nearly 15 megapixels) exceeds the resolution of many more expensive diagnostic radiology displays, which are often only 3–6 megapixels. For context, specialized diagnostic radiology displays typically cost $5,000–$10,000 for just 3–6 megapixels of resolution on smaller screens. The Studio Display XDR’s 15-megapixel panel in a larger format looks like a bargain, once Apple gets FDA clearance.
Few Pro Display XDR owners will likely switch to the Studio Display XDR. While it has some improved specs, it’s still significantly smaller—who’s going to give up a 32-inch 6K display for a 27-inch 5K display?
But on its own, the Studio Display is important. By bringing mini-LED technology, HDR support, and professional color accuracy to a 27-inch display at $3299, Apple has made these capabilities accessible to video editors, photographers, and designers who couldn’t justify the cost of the $5000 Pro Display XDR, particularly when coupled with the $1000 Pro Stand. Yes, $3299 is still expensive, especially when you add $300 for nano-texture glass. But for many professionals whose work demands accurate color reproduction and HDR preview capabilities, the Studio Display XDR is a far better value than the Pro Display XDR it replaces.
Compatibility and Availability
Both displays require macOS 26.3.1 Tahoe or later and work with all Apple silicon Macs. So if you want to buy one of these displays, you’ll have to upgrade to Tahoe and its controversial Liquid Glass interface redesign.
The Studio Display XDR supports 120 Hz only on newer Macs with M4 and M5 chips; older models (M1 through M3) are limited to 60Hz, though all other features work. Both displays also work with recent iPads running iPadOS 26.3.1 or later, including iPad Pro and iPad Air models that have USB-C ports.
